Small stay lift mechanism

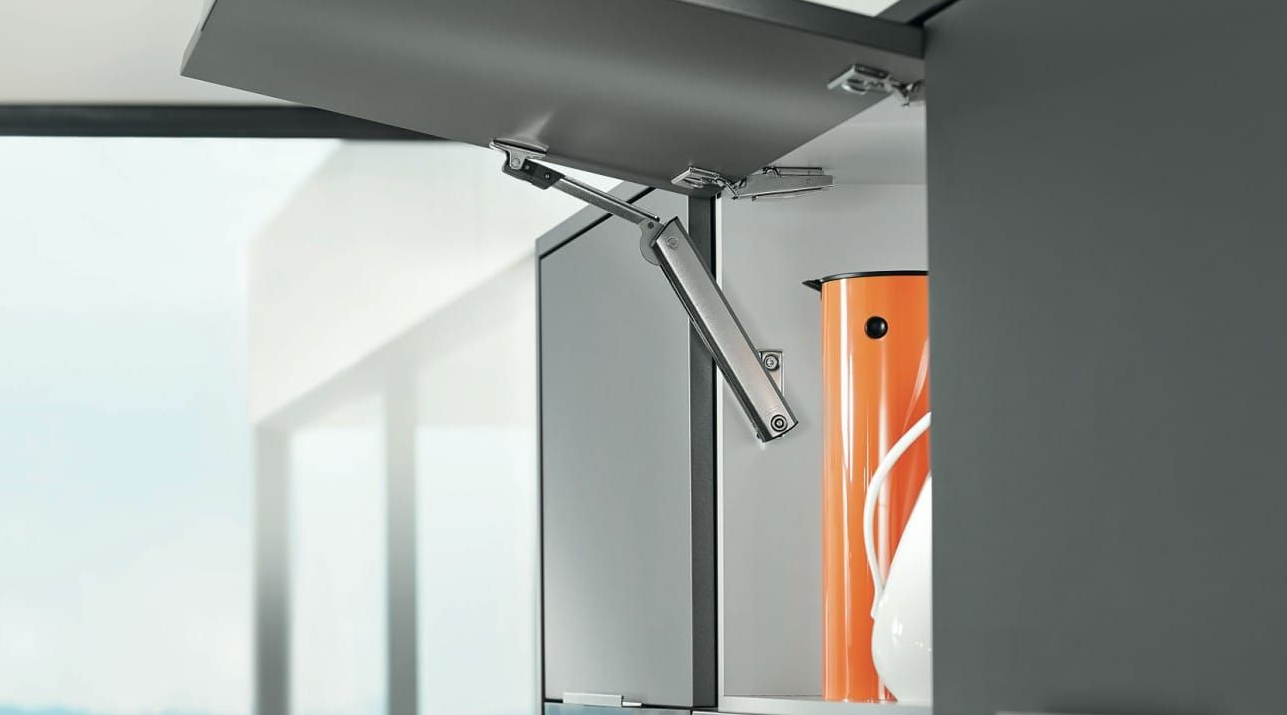

Thanks to its slim construction, AVENTOS HK-XS provides enormous scope for the deisgn of tall units and wall cabinets. Even cabinets with little depth are now possible.

• Ideal for small applications in wall cabinets, tall units and over the refrigetaor
• Simple, infinitely variable lift mechanism
• Perfect motion with a variable stop
• Minimum internal cabinet depth: 125mm
• Cabinet height: 240-600mm
• Opening angle: 105°
• Closes silently and effortlessly in conjunction with CLIP top BLUMOTION hinges

Includes

• 1 x HK-XS Cabinet Bracket - Screw-on (20K5101)
• 1 x HK-XS Wood Door Bracket - Screw-on (20K4101)

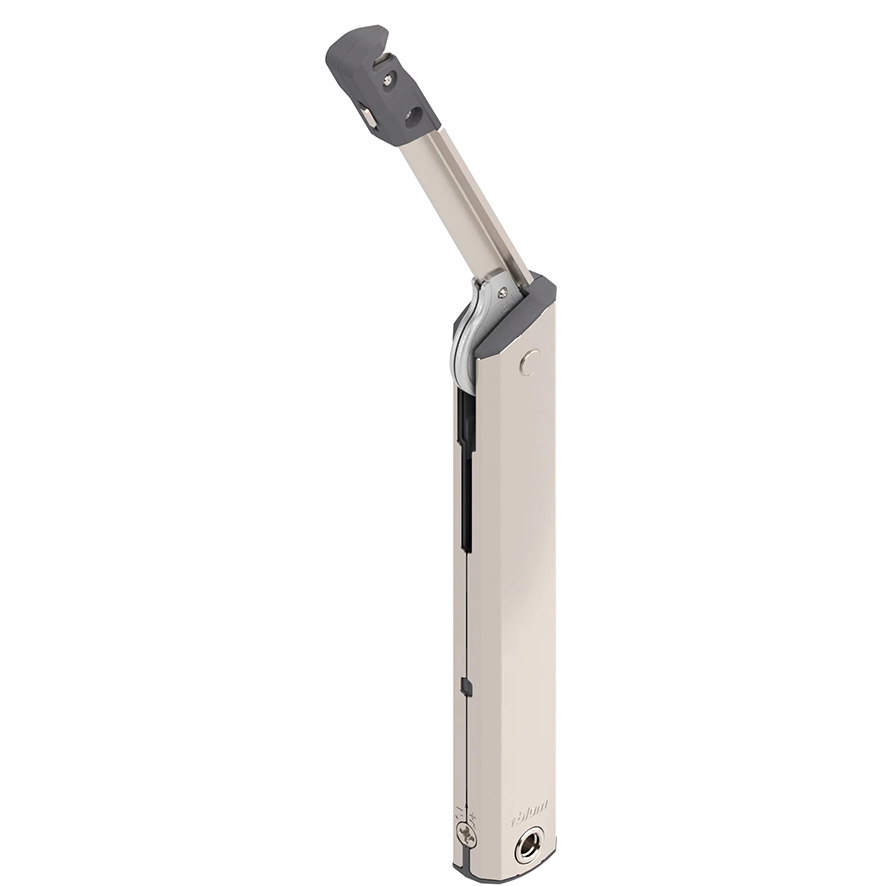

• 1 x HK-XS Lift Mechanism (selected Power Factor)

Does not include CLIP top BLUMOTION hinges - minimum 2 needed per door.

• Height of door (mm) x Weight of door (kg) = Power Factor LF
• 200-1000 Power Factor LF = 20K1101
• 500-1500 Power Factor LF = 20K1301
• 800-1800 Power Factor LF = 20K1501

**Power Factor LF is doubled when used on two sides**
