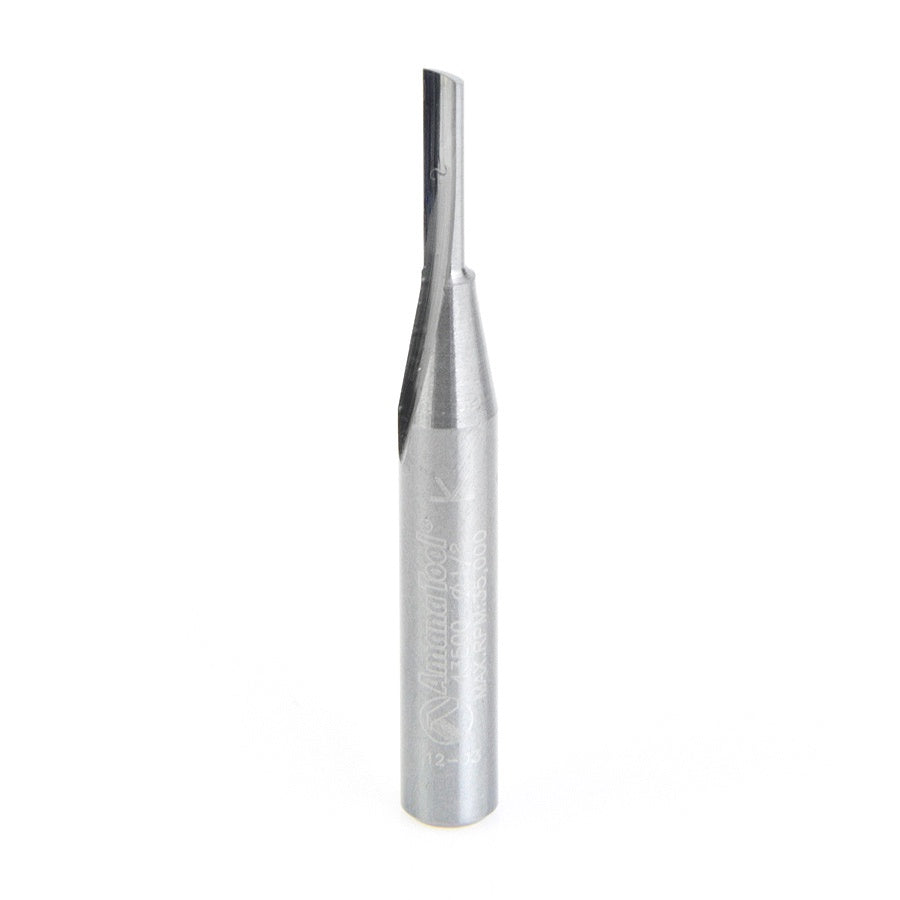

Amana - 43500 - 1/8" Plastic Cutting
Amana - 43500 - 1/8" Plastic Cutting

Amana - 43500 - 1/8" Plastic Cutting

$45.95

Available in stock

Description

43500 - Plastic Cutting (Solid Carbide, Single 'O' Flute)

  • Shank: 1/8"
  • Diameter: 1/8"
  • Cutting Length: 1/2"
  • Overall Length: 2"
  • Flutes: 1 Flute

New solid carbide tools with unique circular 'O' flute design to eject chips more easily. Single flute for fast cutting in soft plastics such as PVC, styrene, ABS, etc.

Excellent for cutting
  • Plastic
  • Acetal
  • Acrylic
  • Acrylic Stone
  • Acrylonitrile Butadiene Styrene (ABS)
  • Alupanel®
  • Copolymer
  • Corian
  • Coroplast®*
  • Corrugated Polypropolyne
  • Delrin
  • Ethylene-Vinyl Acetate
  • Foam Board
  • Fomex®
  • Gator Board
  • High Density Polyethylene (HDPE)
  • High Impact Polystyrene (HIPS)
  • High Pressure Laminates (HPL)
  • Hydroxy-Terminated Polyether (HTPE)
  • Low Density Polyethylene (LDPE)
  • LubX®
  • Lucite
  • Mechanical/Engineered Plastics
  • Nitrite Rubber
  • Nylon
  • Perspex® Cast Acrylic Sheet
  • Phenolic
  • Plexiglas®
  • Polyethylene (PE)
  • Polyethylene Terephthalate (PET)
  • Polyethylene Terephthalate Glycol-Modified (PETG / PET-G)
  • Poly (methyl methacrylate) (PMMA)
  • Polycarbonate
  • Polypropylene (PP)
  • Polyoxymethylene (POM), also known as Acetal, Polyacetal and Polyformaldehyde.
  • PVC
  • Sign Foam
  • StarBoard® (King StarBoard 'R') High Density Polyethylene Sheet (HDPE)
  • Styrene-Acrylonitrile
  • Styrene-Butadiene Rubber (SBR)
  • Styrene-Isoprene-Styrene (SIS)
  • Teflon®
  • Thermoplastic Polyolefin (TPO)
  • Ultra High Molecular Weight Polyethylene (UHMW)
  • Urethane




*A soft plastic cardboard made with super soft, super flexible PVC.
Speed and Feed Rate

CNC running parameters based on 1 x Diameter depth per pass:

  • RPM: 18,000
  • Feed Rate: 60 IPM
  • Chip Load per tooth: 0.004"
  • Ramp down Rate: 60 IPM
