Amana - 45624 - 60° V-Groove
Amana - 45624 - 60° V-Groove

Amana - 45624 - 60° V-Groove

$52.95

Available in stock

Description

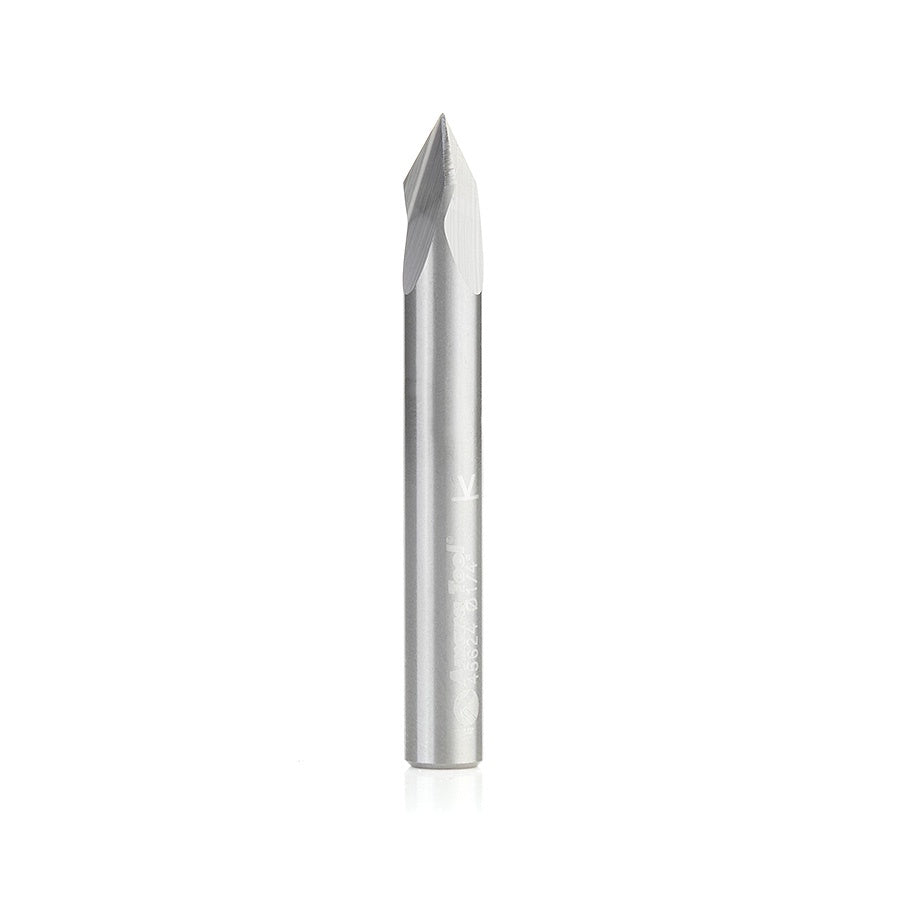

45624 - 60° V-Groove (Solid Carbide)

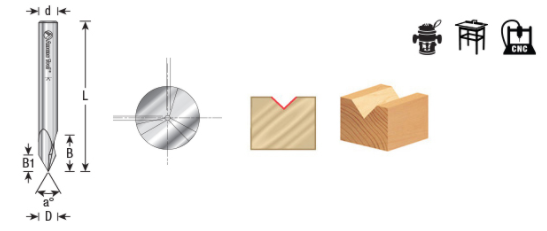

  • Shank (d): 1/4"
  • Diameter (D): 1/4"
  • Angle (a°): 60°
  • Cutting Height (B): 31/64"
  • Overall Length (L): 2"
  • B1: 7/32"
  • Max RPM: 35,000
  • Flutes: 3

Cut decorative V-Grooves and lettering on signs with these V-Groove bits. Use with an edge guide to chamfer and bevel edges. Can be used with handheld, table-mounted and CNC routers.

Excellent for cutting
  • 20lbs High Density Urethane
  • Acrylic
  • Composites
  • Composite Decking
  • Foam
  • Laminate
  • MDF/HDF
  • Melamine
  • Plywood
  • PVC Plastic
  • Sign Board
  • Solid Surface
  • Veneered Plywood
  • Wood
  • Xanita® Board
Speed and Feed Rate

CNC running parameters based on 1 x Diameter depth per pass:

  • RPM: 18,000
  • Feed Rate: 90 IPM
  • Chip Load per tooth: 0.002"
  • Ramp down Rate: 30 IPM
