Amana - 46094-K - 1/4" Composite Spiral
Amana - 46094-K - 1/4" Composite Spiral
Sold out

Amana - 46094-K - 1/4" Composite Spiral

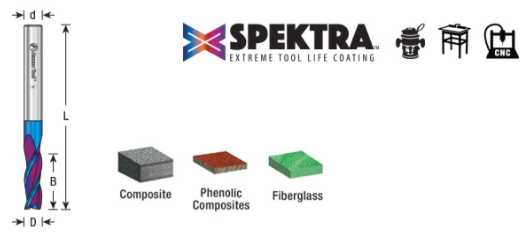

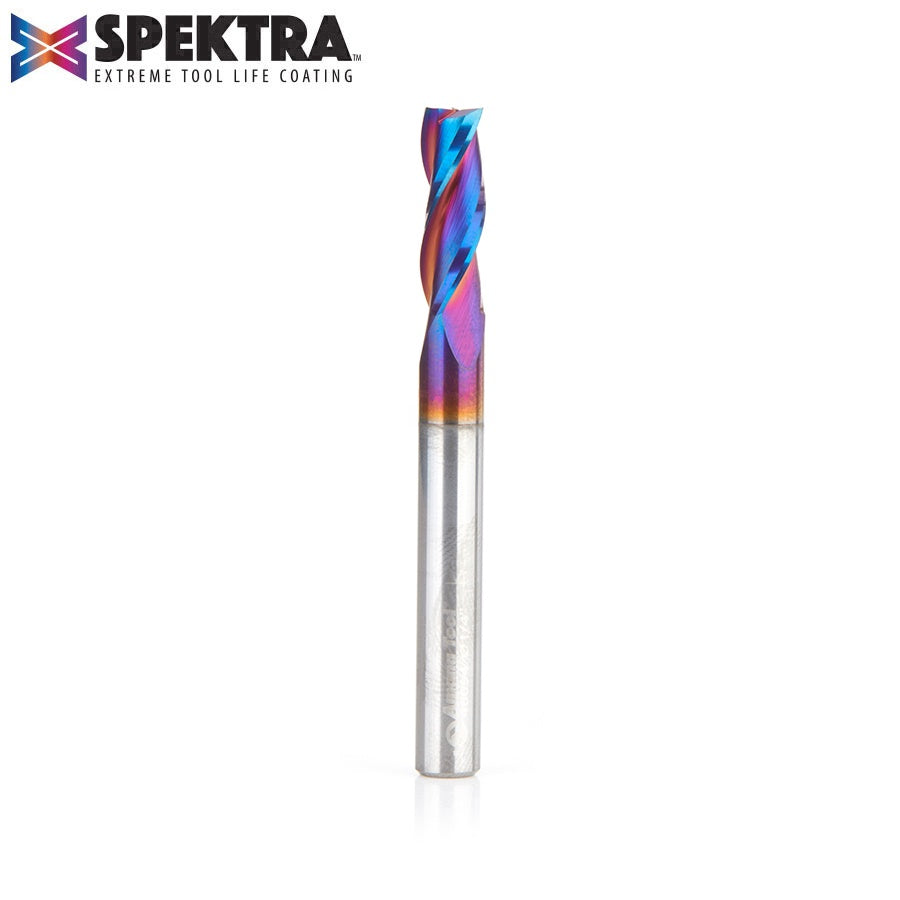

Amana 46094-K 1/4" Composite Spiral is a solid carbide CNC router bit designed for finishing modern composite and aerospace materials.

Shank: 1/4"
Cutting Diameter: 1/4"
Cut Length: 3/4"
Overall Length: 2-1/2"
Flutes: 2 Flute Up-Cut

$70.95

Out of stock

Description

46094-K - Composite Spiral (Solid Carbide, 3-Flute, Up-Cut)

  • Shank: 1/4"
  • Diameter: 1/4"
  • Cutting Length: 3/4"
  • Overall Length: 2-1/2"
  • Flutes: 2 Flute Up-Cut



Amana Tool®'s Modern Materials Finishing Geometry (MMFG) incorporates high shear multi-flute and a Spektra™ coating designed for the ultimate combination of finish and tool longevity in aerospace materials. Modern-day materials present challenges to the fabricator using these special multi-flute edge tools featuring Spektra™ coating addresses these challenges with a winning geometry combination.
Excellent for cutting



  • Plastic
  • Acrylic Stone
  • Aluminum
  • Acrylonitrile-Butadiene-Styrene (ABS)
  • Carbon Fiber Reinforced Polymer (CFRP)
  • Composite
  • Corian
  • Coroplast®*
  • Fiberglass
  • Fiberglass PCB Board
  • HDPE
  • High Impact Polystyrene (HIPS)
  • Low Density Polyethylene (LDPE)
  • Phenolics
  • Poly (methyl methacrylate) (PMMA)
  • Polycarbonate (Lexan™)†
  • Polyethylene Terephthalate Glycol-Modified (PETG / PET-G)
  • Thermoplastic Polyolefin (TPO)
*A soft plastic cardboard made with super soft super flexible PVC.

†Recommendation: Use the slowest suggested feed rates and the shortest bits necessary for cutting and routing Lexan™.
Coating

Spektra™ bits feature a nACo® nanocomposite coating with an extreme nanohardness and heat resistance. With a brilliant distinctively-tinted coloring nACo provides additional improvements in four critical aspects of router tooling.

  • nACo coating is a micro-thin ceramic coating which enables the tool's cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality.
  • Coating prevents high heat and oxidation which is detrimental to cutting tool performance.
  • Multi-colored hues, while attractive, will dissipate upon use and yet coating will remain fully effective.
  • nACo offers approximately 4,500 Vickers for impressive solid hardness on cutting areas of the tool, for an increase up to 2.5 times compared to uncoated bits.

Note: Blue based color dissipates immediately upon use. nACo® nanocomposite coating will not wear off.

Speed and Feed Rate

CNC running parameters based on 1 x Diameter depth per pass:

  • RPM: 18,000
  • Feed Rate: 100 IPM
  • Chip Load per tooth: 0.002"
  • Ramp down Rate: 34 IPM
