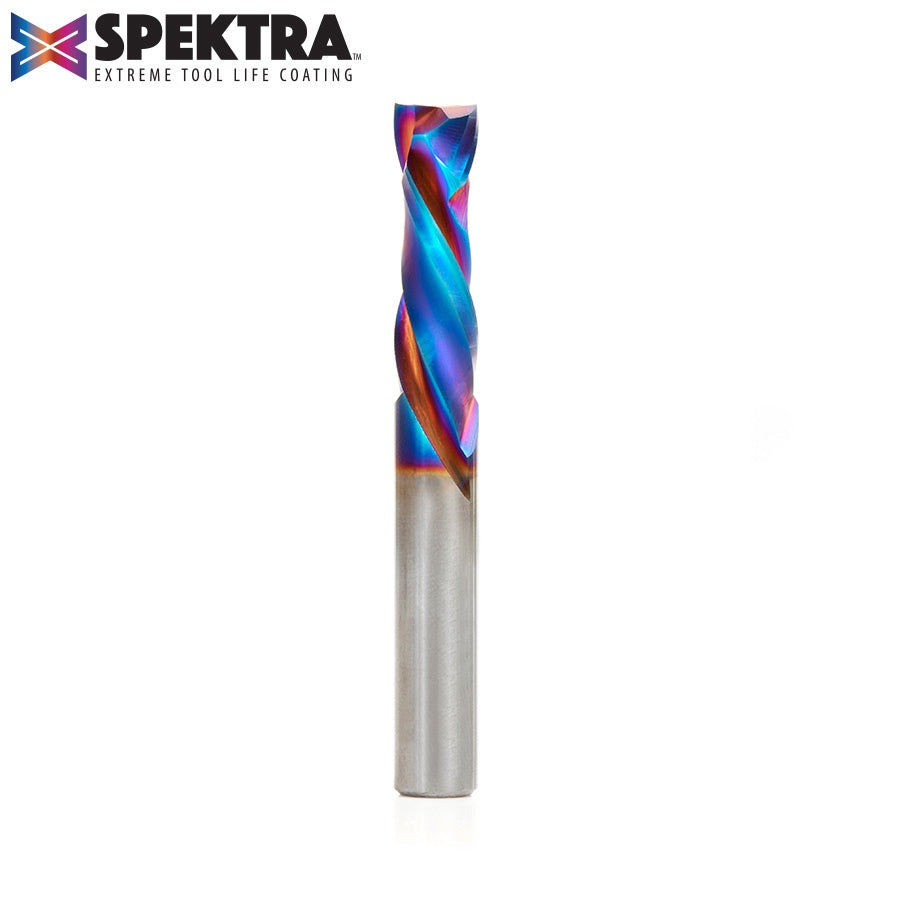

Amana - 46172-K - 3/8" Compression Spiral
Amana - 46172-K - 3/8" Compression Spiral
Amana - 46172-K - 3/8" Compression Spiral
Sold out

Amana - 46172-K - 3/8" Compression Spiral

$164.95

Out of stock

Description

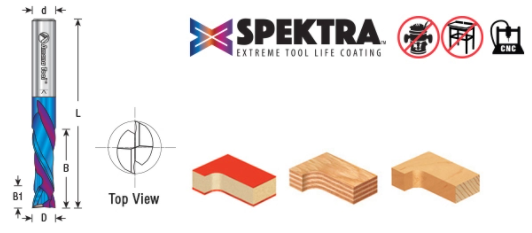

46172-K - Compression Spiral (Solid Carbide)

  • Shank: 3/8"
  • Diameter: 3/8"
  • Cutting Length: 1-1/4"
  • Up Cut Height: 9mm
  • Overall Length: 3"
  • Flutes: 2 Flute



Special unique carbide for longer lifetime in abrasive material. Designed for CNC applications requiring high feed rates and a clean finish. Particularly suitable for double-sided melamine or laminated material. Flawless compression cuts.
Excellent for cutting
  • CFRP
  • Double Sided Melamine
  • Laminate
  • Laminated Plywood
  • Melamine Particle Board
  • MDF
  • Oriented Strand Board (OSB)*
  • Particle Board
  • Softwood/Hardwood
  • Veneered Plywood
*Oriented Strand Board is an engineered wood particle board.
Coating

Spektra™ bits feature a nACo® nanocomposite coating with an extreme nanohardness and heat resistance. With a brilliant distinctively-tinted coloring nACo provides additional improvements in four critical aspects of router tooling.

  • nACo coating is a micro-thin ceramic coating which enables the tool's cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality.
  • Coating prevents high heat and oxidation which is detrimental to cutting tool performance.
  • Multi-colored hues, while attractive, will dissipate upon use and yet coating will remain fully effective.

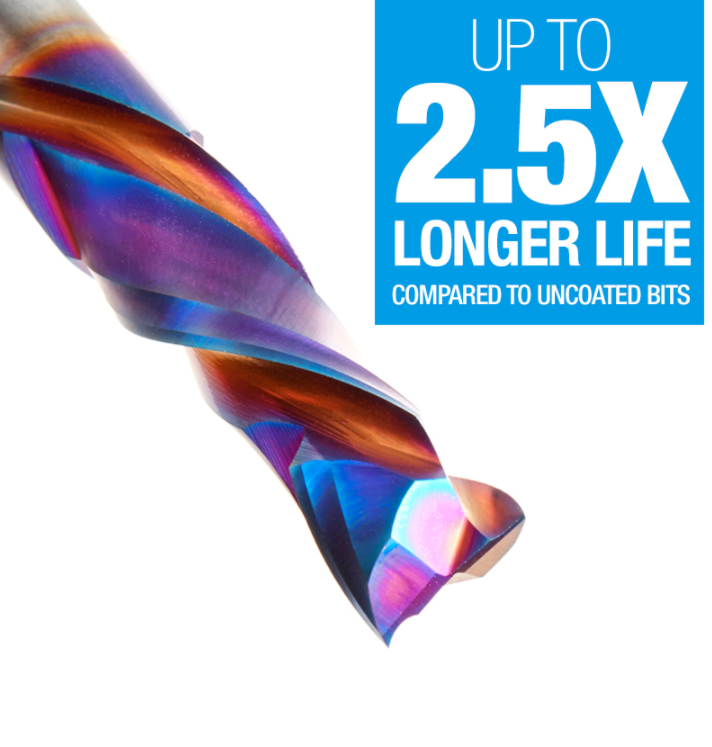

  • nACo offers approximately 4,500 Vickers for impressive solid hardness on cutting areas of the tool, for an increase up to 2.5 times compared to uncoated bits.

Note: Blue based color dissipates immediately upon use. nACo® nanocomposite coating will not wear off.

Speed and Feed Rate

CNC running parameters based on 1 x Diameter depth per pass:

  • RPM: 18,000
  • Feed Rate: 100 IPM
  • Chip Load per tooth: 0.006"
  • Ramp down Rate: 50 IPM
