Amana - 46202-K - 1/4" Spiral Plunge (Down-Cut)
Amana - 46202-K - 1/4" Spiral Plunge (Down-Cut)
Amana - 46202-K - 1/4" Spiral Plunge (Down-Cut)

Amana - 46202-K - 1/4" Spiral Plunge (Down-Cut)

$60.95

Available in stock

Description

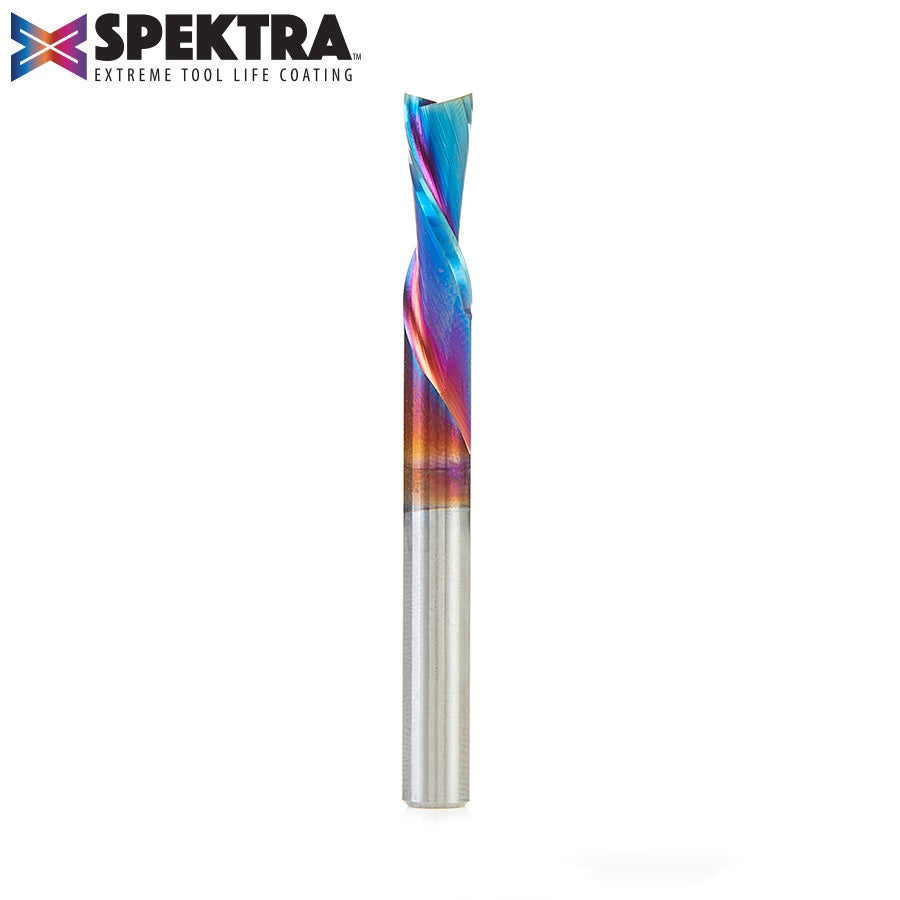

46202-K - Spiral Plunge (Solid Carbide, Down-Cut)

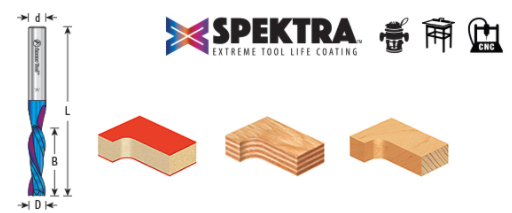

  • Shank: 1/4"
  • Diameter: 1/4"
  • Cutting Length: 3/4"
  • Overall Length: 2-1/2"
  • Flutes: 2 Flute Down-Cut



Spiral-flute bits combine a shearing action in cutting with an augering action in chip clearance. The shearing action yields an especially clean accurate cut while the augering action clears chips from the cut.

The ‘Down-Cut’ cuts from the surface down leaving a smooth edge at the surface.

Special unique carbide grade increased clearance geometry and razor-sharp cutting edges with polished flutes provide a superior finish and longer tool life especially in abrasive materials. Great for production settings and excellent for creating grooves and dado cuts in particleboard, plywood and laminate. Primarily used on CNC machines and other automatic routers. Can be used with handheld and table-mounted portable routers.
Excellent for cutting
  • Laminate
  • Melamine
  • Melamine Particle Board
  • MDF
  • Veneered Plywood
  • Wood
Coating

Spektra™ bits feature a nACo® nanocomposite coating with an extreme nanohardness and heat resistance. With a brilliant distinctively-tinted coloring nACo provides additional improvements in four critical aspects of router tooling.

  • nACo coating is a micro-thin ceramic coating which enables the tool's cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality.
  • Coating prevents high heat and oxidation which is detrimental to cutting tool performance.
  • Multi-colored hues, while attractive, will dissipate upon use and yet coating will remain fully effective.

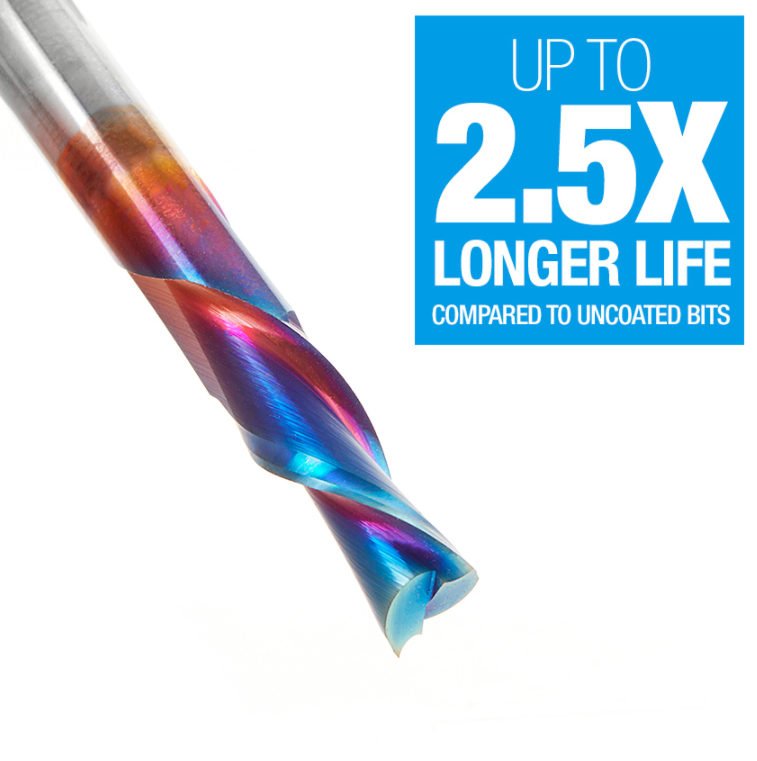

  • nACo offers approximately 4,500 Vickers for impressive solid hardness on cutting areas of the tool, for an increase up to 2.5 times compared to uncoated bits.

Note: Blue based color dissipates immediately upon use. nACo® nanocomposite coating will not wear off.

Speed and Feed Rate

CNC running parameters based on 1 x Diameter depth per pass:

  • RPM: 18,000
  • Feed Rate: 100 IPM
  • Chip Load per tooth: 0.003"
  • Ramp down Rate: 50 IPM
