Amana - 46306 - 1/4" Composite Honeycomb Hogger
Amana - 46306 - 1/4" Composite Honeycomb Hogger

Amana - 46306 - 1/4" Composite Honeycomb Hogger

$131.95

Available in stock

Description

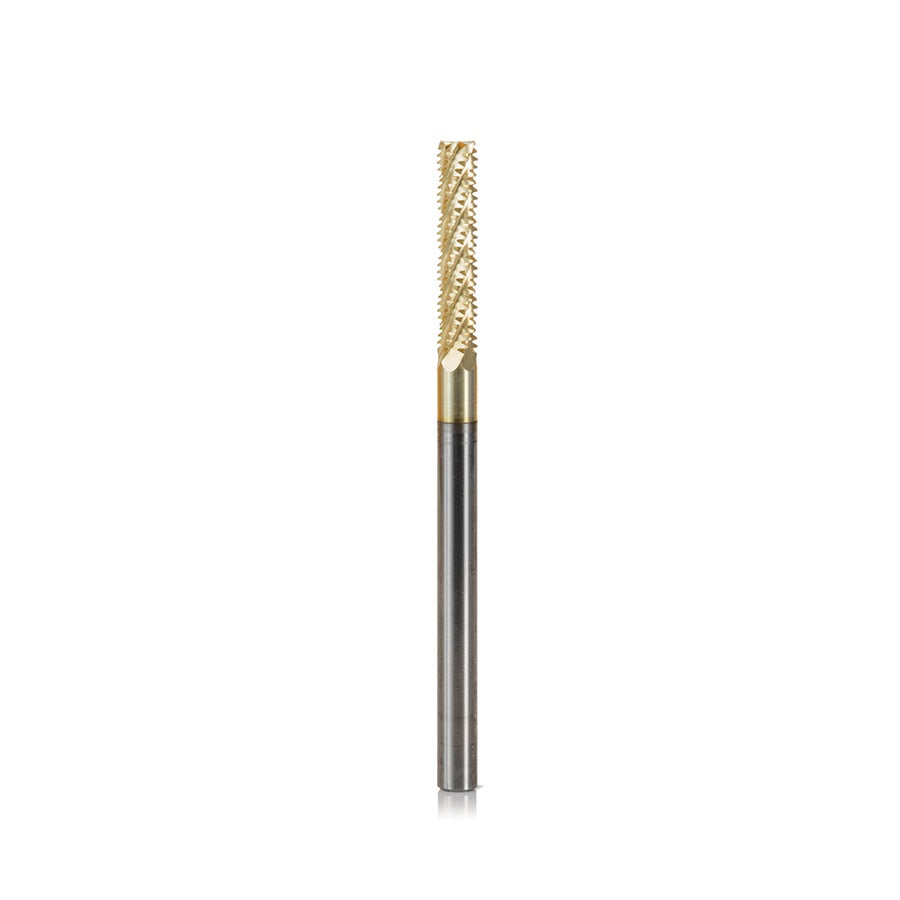

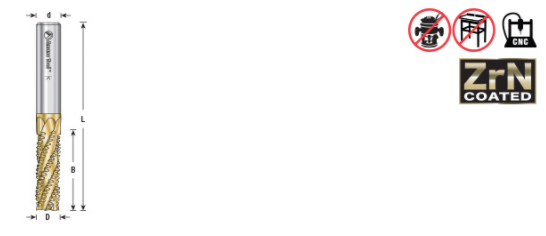

46306 - Composite Honeycomb Hogger (Solid Carbide, 6-Flute)

  • Shank: 1/4"
  • Diameter: 1/4"
  • Cutting Length: 1-1/4"
  • Overall Length: 4"
  • Max RPM: 25,000
  • Flutes: 6

Designed to cut a large variety of honeycomb materials, hogger geometry is excellent for shredding and chip evacuation while maintaining a smooth surface.

Amana Tool's "hogger" style routers for honeycomb composites incorporate a precision-ground "knuckle" profile, allowing a freer-cutting action that reduces power requirements and less sidewall pressure in low output spindles while giving impressive gains in feed-rates. ZrN coating greatly enhances durability in highly abrasive composites.

Excellent for cutting



  • Honeycomb
  • Composite Materials
  • Acrylonitrile-Butadiene-Styrene (ABS)
  • Lexan™
Zirconium Nitride (ZrN) Coating


  • Creates a harder and tougher cutting edge allows for a prolonged cutting edge life and helps to prevent the build-up of material in the flutes while cutting
  • Have the tendency to run/spin much faster than an uncoated tool
  • Optimized flute geometry and low Total Indicated Runout (TIR) guarantees clean cuts, essentially eliminates sanding and reduces chatter (where the machine or work piece vibrates) under high chip loads (when used with low TIR spindles)
  • High flute volume supports high feed rates and chip loads
  • High aspect ratio for single pass deep-reach cutting
  • Flute geometry optimized for cutting sign foam, sign board, hardwoods, thermoplastics and phenolic composites



 For optimal results and extended tool life use mist lubricant system or air cooling.
Speed and Feed Rate

CNC running parameters based on 1 x Diameter depth per pass:

  • RPM: 18,000
  • Feed Rate: 320 IPM
  • Chip Load per tooth: 0.003"
  • Ramp down Rate: 54 IPM
