Amana - 46308 - 3/8" Composite Honeycomb
Amana - 46308 - 3/8" Composite Honeycomb

Amana - 46308 - 3/8" Composite Honeycomb

$152.95

Available in stock

Description

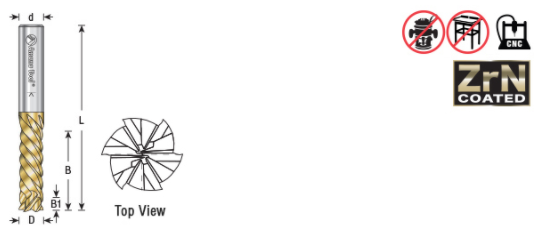

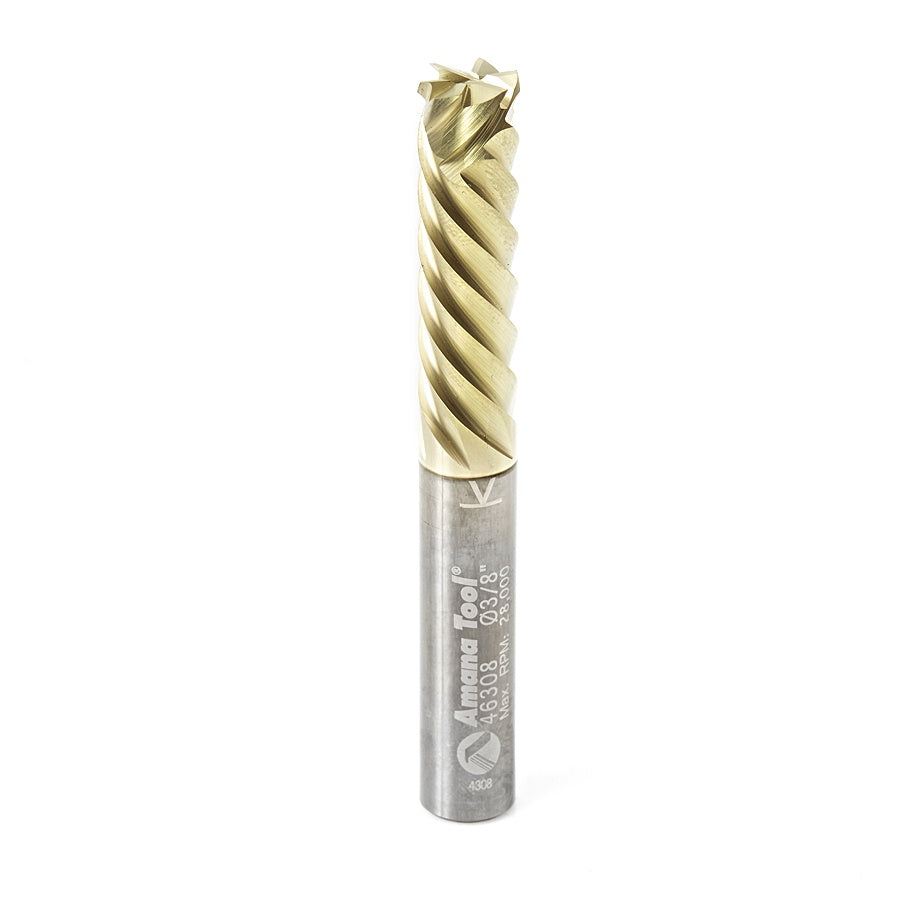

46308 - Composite Honeycomb (Solid Carbide, 6-Flute)

  • Shank: 3/8"
  • Diameter: 3/8"
  • Cutting Length: 1-1/4"
  • Overall Length: 3"
  • B1: 1/4"
  • Max RPM: 28,000
  • Flutes: 6

Solid carbide honeycomb cutting router bits provide a burr-free top and bottom finish, providing that the workpiece is thicker than 0.250”. Designed for cutting Bioboard™, Falconboard®, Aluminum Honeycomb (AHP) carbon fiber and honeycomb cardboard.

Excellent for cutting
  • Acrylonitrile-Butadiene-Styrene (ABS)
  • Aluminum Honeycomb Panel (AHP)
  • BioBoard™
  • Carbon
  • Carbon Fiber
  • Carbon Graphite
  • Composites
  • Falconboard®
  • Fiberglass Filled Plastics
  • Honeycomb Cardboard
  • Lexan™
  • Unfilled Plastics
Zirconium Nitride (ZrN) Coating


  • Creates a harder and tougher cutting edge allows for a prolonged cutting edge life and helps to prevent the build-up of material in the flutes while cutting
  • Have the tendency to run/spin much faster than an uncoated tool
  • Optimized flute geometry and low Total Indicated Runout (TIR) guarantees clean cuts, essentially eliminates sanding and reduces chatter (where the machine or work piece vibrates) under high chip loads (when used with low TIR spindles)
  • High flute volume supports high feed rates and chip loads
  • High aspect ratio for single pass deep-reach cutting
  • Flute geometry optimized for cutting sign foam, sign board, hardwoods, thermoplastics and phenolic composites



 For optimal results and extended tool life use mist lubricant system or air cooling.
Speed and Feed Rate

CNC running parameters based on 1 x Diameter depth per pass:

  • RPM: 18,000
  • Feed Rate: 320 IPM
  • Chip Load per tooth: 0.003"
  • Ramp down Rate: 54 IPM
