Amana - 46380-K - 1/2" Spiral Ball Nose
Amana - 46380-K - 1/2" Spiral Ball Nose
Amana - 46380-K - 1/2" Spiral Ball Nose

Amana - 46380-K - 1/2" Spiral Ball Nose

$180.95

Available in stock

Description

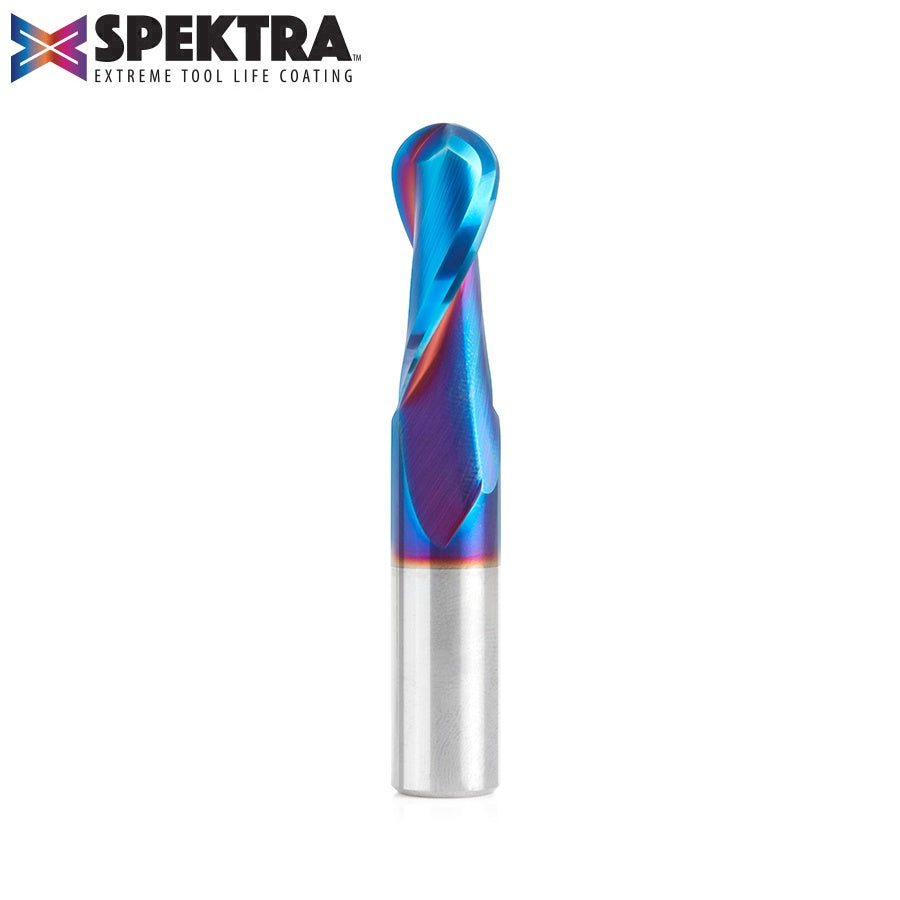

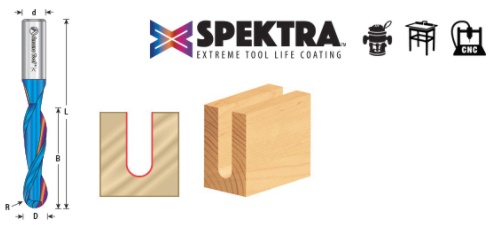

46380-K - Spiral Ball Nose (Solid Carbide Spiral, Up-Cut)

  • Shank: 1/2"
  • Radius: 1/4"
  • Diameter: 1/2"
  • Cutting Length: 1-1/4"
  • Overall Length: 3"
  • Flutes: 2 Flute Up-Cut

Used for carving decorative doors and sign manufacturing. Up-Cut design leaves an excellent finish and expels chips quickly.

Excellent for Cutting:

  • Soft/Hard Wood
  • MDF
  • Soft/Hard Plastic
  • Sign Foam



Coating

Spektra™ bits feature a nACo® nanocomposite coating with an extreme nanohardness and heat resistance. With a brilliant distinctively-tinted coloring nACo provides additional improvements in four critical aspects of router tooling.

  • nACo coating is a micro-thin ceramic coating which enables the tool's cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality.
  • Coating prevents high heat and oxidation which is detrimental to cutting tool performance.
  • Multi-colored hues, while attractive, will dissipate upon use and yet coating will remain fully effective.

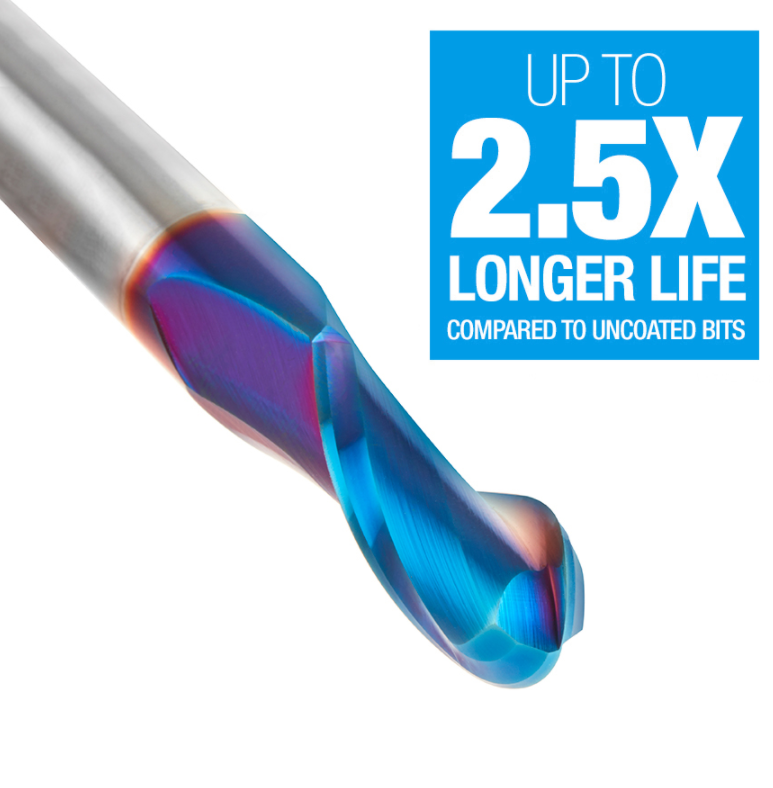

  • nACo offers approximately 4,500 Vickers for impressive solid hardness on cutting areas of the tool, for an increase up to 2.5 times compared to uncoated bits.

Note: Blue based color dissipates immediately upon use. nACo® nanocomposite coating will not wear off.

Speed and Feed Rate

CNC running parameters based on 1 x Diameter depth per pass:

  • RPM: 18,000
  • Feed Rate: 120 IPM
  • Chip Load per tooth: 0.003"
  • Ramp down Rate: 60 IPM
