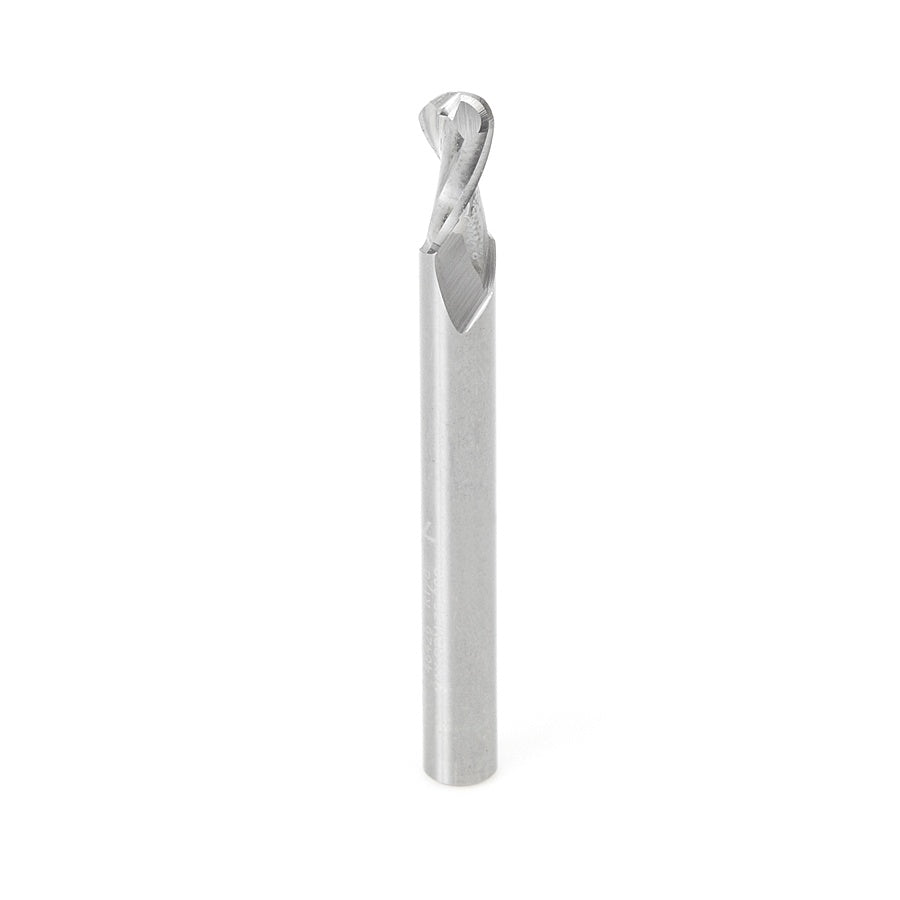

46426 - Spiral Ball Nose (Solid Carbide, Up-Cut)

• Shank: 1/4"
• Radius: 1/8"
• Diameter: 1/4"
• Cutting Length: 1/2"
• Overall Length: 2-1/2"
• Flutes: 2 Flute Up-Cut

Amana Tool's high mirror-finish solid carbide up-cut spiral ball nose router bits are designed to eliminate tool marks that commonly appear when used with plastic and solid surface materials. Due to the highly polished finish and unique tool geometry, the spiral ball nose router bit delivers superior surface finish of at least 28 Ra (roughness average) in various materials. The up-cut router bits also eject chips up, to help prevent chip out on the bottom of the material.

Constructed of special grade solid carbide, the Amana Tool spiral ball nose router bits last longer than traditional router bits and deliver superior cutting performance with plastics. The bits are ideal for use in a variety of applications spanning the mechanical, medical and woodworking industries.

*A soft plastic cardboard made with super soft super flexible PVC.

CNC running parameters based on 1 x Diameter depth per pass:

• RPM: 18,000
• Feed Rate: 80 IPM
• Chip Load per tooth: 0.002"
• Ramp down Rate: 40 IPM
