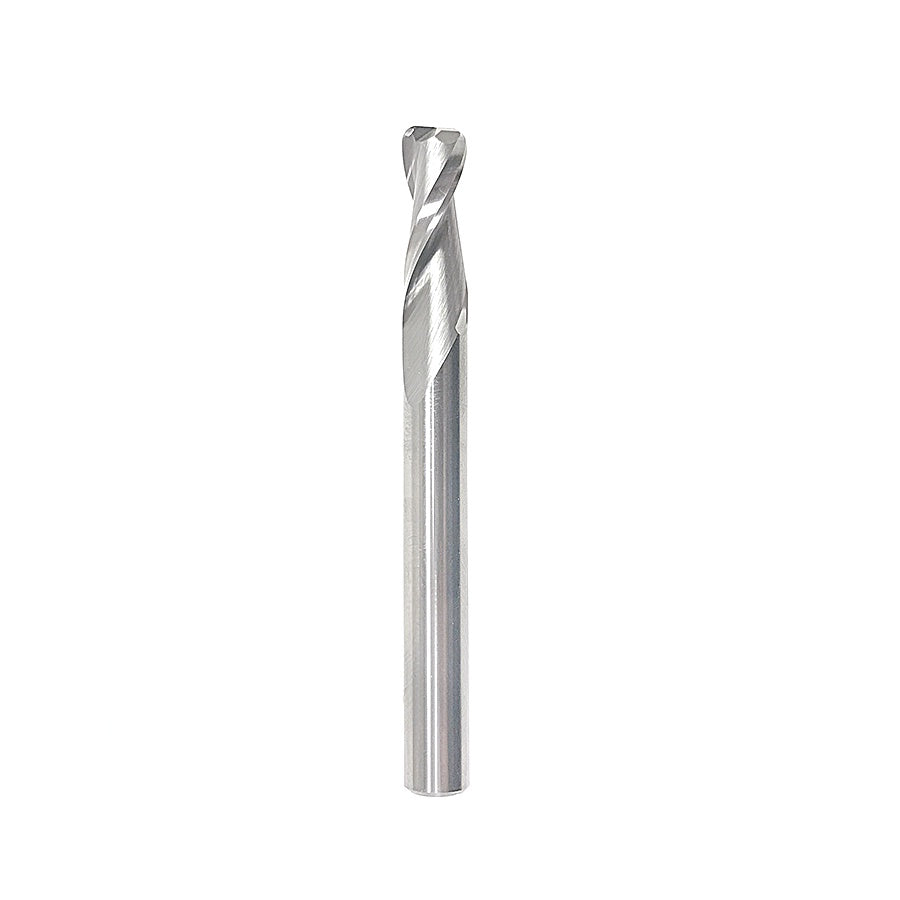

46460 - Spiral Flute Plunge (Solid Carbide, Corner Radius, Up-Cut)

• Shank: 1/4"
• Radius: 1/16"
• Diameter: 1/4"
• Cutting Length: 3/4"
• Overall Length: 2-1/2"
• Flutes: 2 Flute Up-Cut

For carving, lettering, decorative doors and sign manufacturing.
Leaves an excellent finish and expels chips quickly.

Excellent for Cutting:

• Aluminum
• MDF
• Soft/Hard Plastic
• Soft/Hard Wood

CNC running parameters based on 1 x Diameter depth per pass:

• RPM: 18,000
• Feed Rate: 100 IPM
• Chip Load per tooth: 0.002"
• Ramp down Rate: 50 IPM
