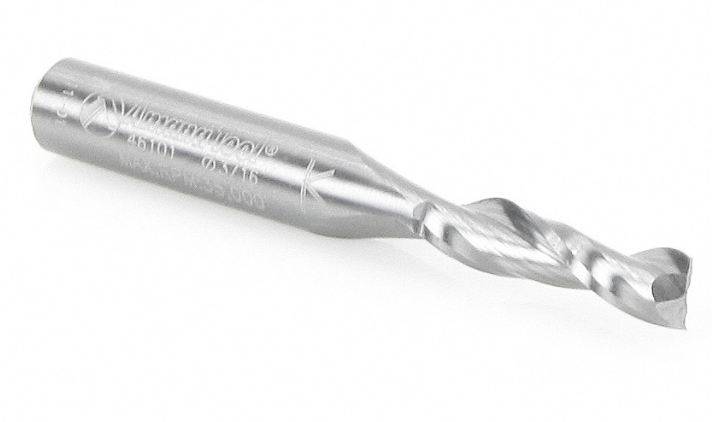

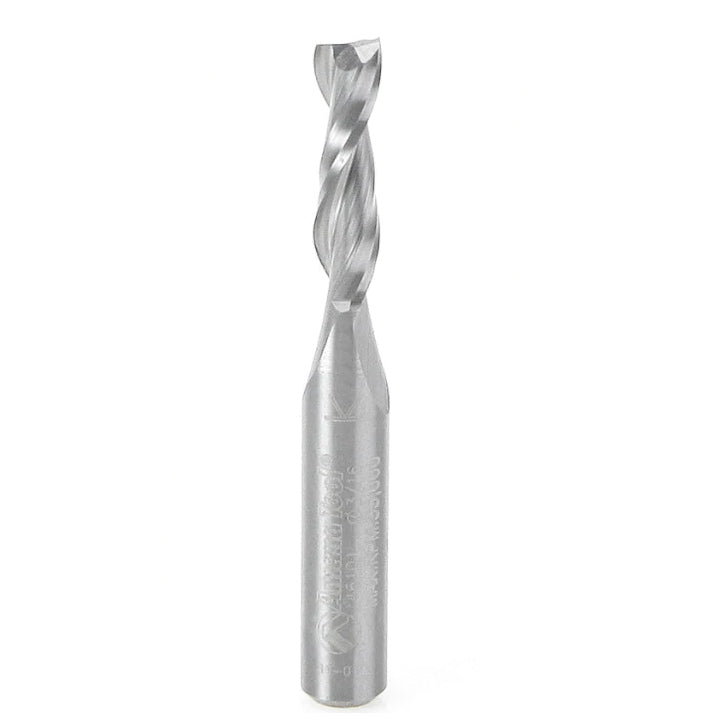

Amana 46101 3/16" Spiral Plunge is a solid carbide CNC router bit designed for clean plunge cutting, grooving, and mortising in wood, plywood, and laminate materials.

Shank: 1/4"
Cutting Diameter: 3/16"
Cut Length: 3/4"
Overall Length: 2"
Flutes: 2 Flute Up-Cut

$50.95

Available in stock

Description

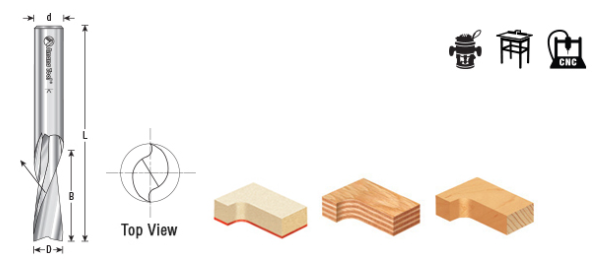

46101 - Spiral Plunge (Solid Carbide, Up-Cut)

  • Shank (d): 1/4"
  • Diameter (D): 3/16"
  • Cutting Length (B): 3/4"
  • Overall Length (L): 2"
  • Flutes: 2 Flute Up-Cut



Spiral-flute bits combine a shearing action in cutting with an augering action in chip clearance. The shearing action yields an especially clean accurate cut while the augering action clears chips from the cut.

The ‘Up-Cut’ shears from the bottom up pulling chips from the bottom up thus allowing deeper penetration with less stress on the tool. An excellent choice for mortising.

Special unique carbide grade increased clearance geometry and razor-sharp cutting edges with polished flutes provide a superior finish and longer tool life especially in abrasive materials. Great for production settings and excellent for creating grooves and dado cuts in particleboard, plywood and laminate. Primarily used on CNC machines and other automatic routers. Can be used with handheld and table-mounted portable routers.
Excellent for cutting
  • Laminate
  • Melamine
  • Melamine Particle Board
  • MDF
  • Veneered Plywood
  • Wood
Speed and Feed Rate

CNC running parameters based on 1 x Diameter depth per pass:

  • RPM: 18,000
  • Feed Rate: 100 IPM
  • Chip Load per tooth: 0.003"
  • Ramp down Rate: 50 IPM
