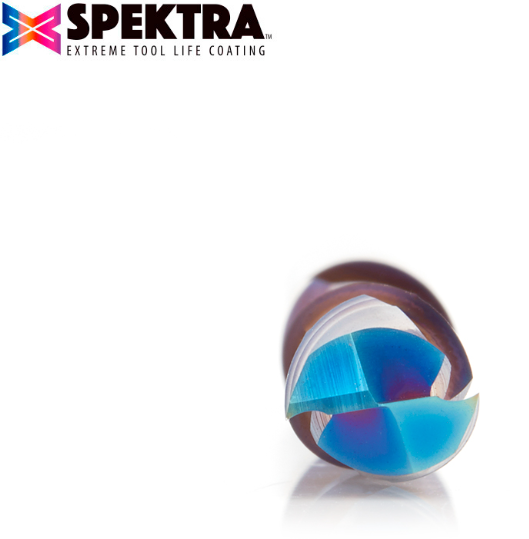

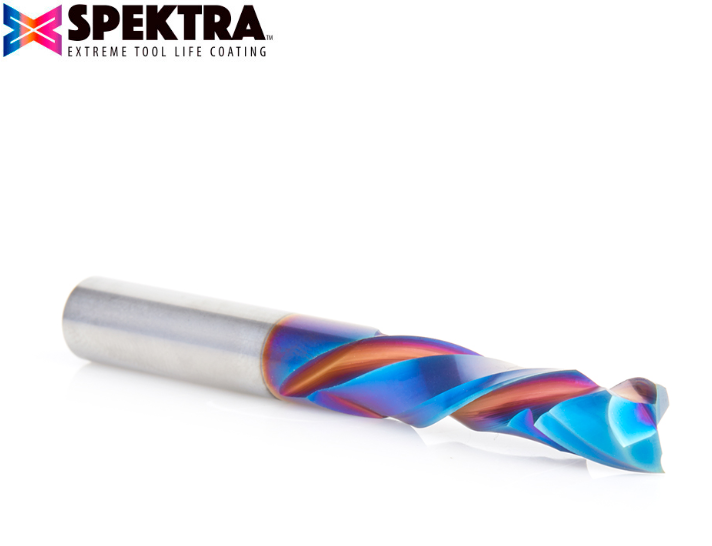

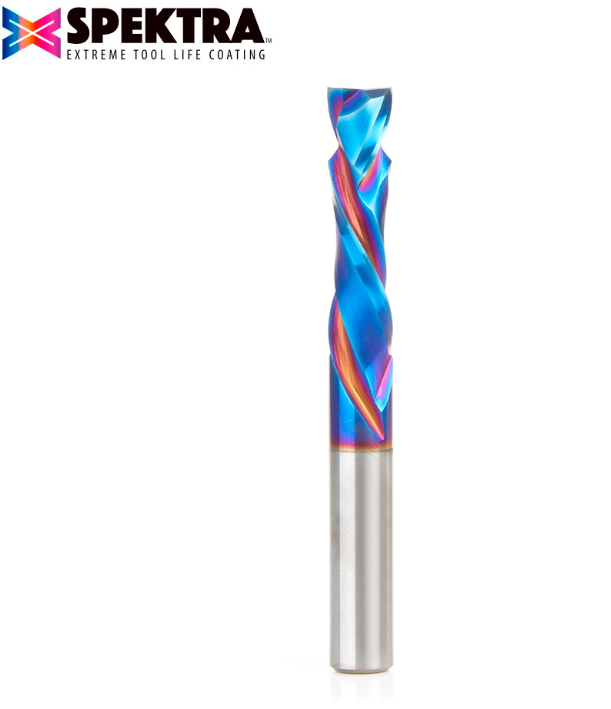

Amana 48308-K Compression Spiral is a solid carbide CNC router bit designed for clean compression cuts in laminated materials and double-sided melamine.

Shank: 8mm
Cutting Diameter: 8mm
Cut Length: 32mm
Overall Length: 74mm
Flutes: 2

$158.95

Available in stock

Description

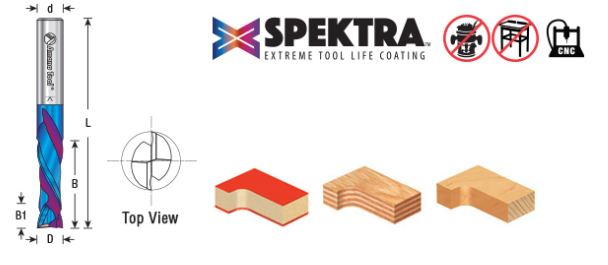

Spiral Plunge (Solid Carbide, Up-Cut)

  • Diameter (D): 8mm
  • Cutting Length (B): 32mm
  • B1: 11mm
  • Shank (d): 8mm
  • Overall Length (L): 74mm
  • Type: nACo Ceramic Coating
  • Flutes: 2

Special unique carbide for longer lifetime in abrasive material. Designed for CNC applications requiring high feed rates and a clean finish. Particularly suitable for double-sided melamine or laminated material. Flawless compression cuts

Excellent for cutting
  • Laminate
  • Melamine
  • Melamine Particle Board
  • MDF
  • Veneered Plywood
  • Wood
Coating

Spektra™ bits feature a nACo® nanocomposite coating with an extreme nanohardness and heat resistance. With a brilliant distinctively-tinted coloring nACo provides additional improvements in four critical aspects of router tooling.

  • nACo coating is a micro-thin ceramic coating which enables the tool's cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality.
  • Coating prevents high heat and oxidation which is detrimental to cutting tool performance.
  • Multi-colored hues, while attractive, will dissipate upon use and yet coating will remain fully effective.

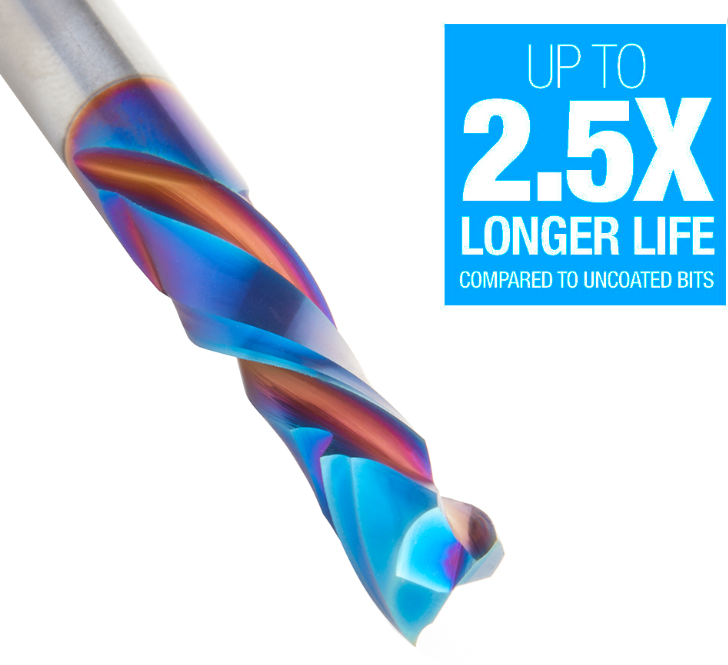

  • nACo offers approximately 4,500 Vickers for impressive solid hardness on cutting areas of the tool, for an increase up to 2.5 times compared to uncoated bits.

Note: Blue based color dissipates immediately upon use. nACo® nanocomposite coating will not wear off.
