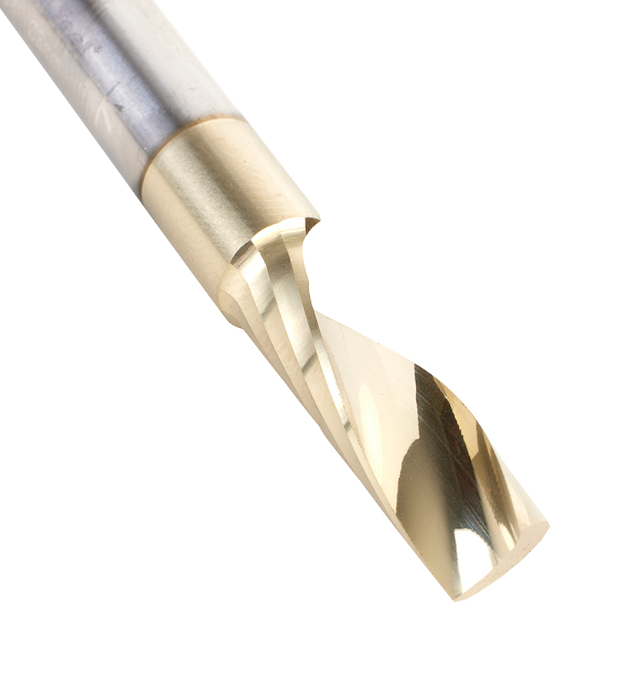

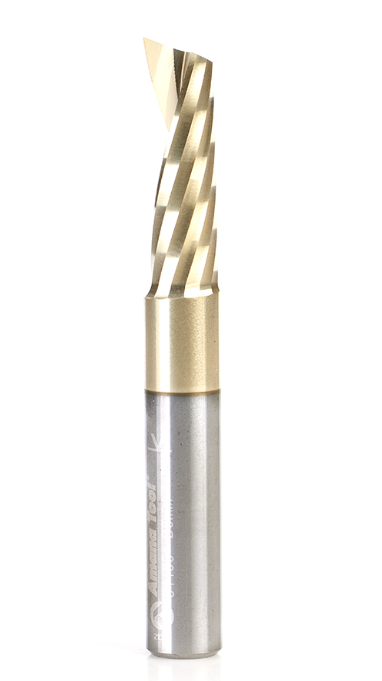

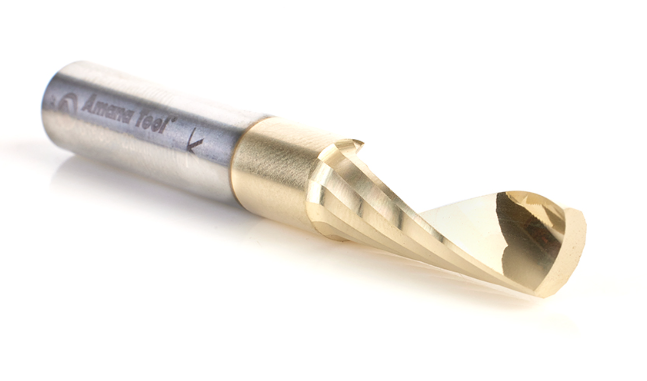

Amana - 51498-Z - 8mm Aluminum Cutting
Amana - 51498-Z - 8mm Aluminum Cutting
Amana - 51498-Z - 8mm Aluminum Cutting
Amana - 51498-Z - 8mm Aluminum Cutting

Amana - 51498-Z - 8mm Aluminum Cutting

$105.95

Available in stock

Description

Aluminum Cutting (Solid Carbide, Spiral 'O' Flute, Up-Cut)

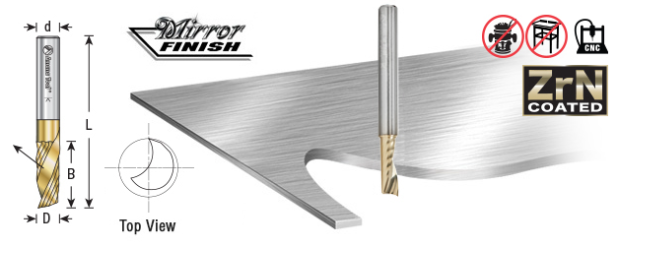

  • Direction: Up-Cut
  • Diameter (D): 8mm
  • Cutting Length (B): 25mm
  • Shank (d): 8mm
  • Overall Length (L): 64mm
  • Flutes: 1

To be used only on CNC machines and routers with automatic feeding.

Using the highest quality sub-micrograin carbide these bits have a special proprietary edge processing system featuring a super high polished cutting edge with a unique “mirror finish” resulting in clean cuts, less chance for chip re-welding, a superior surface finish and a longer tool life. Right hand helix right hand cut.

Specifically designed for a variety CNC machining applications excellent for cutting.

Maximum RPM: 35,000

Excellent for cutting
  • ALPOLIC® Copper Composite Material (CCM)
  • Alucobond®
  • Aluminum
  • Aluminum 5052
  • Aluminum 6061
  • Aluminum Alloys
  • Aluminum Composite Materials (ACM)
  • Aluminum Composite Panel (ACP)*
  • Alupanel®
  • Brass
  • Copper
  • Dibond®
  • Durabond**
  • e-panel™
  • Etalbond®
  • Fomex® with Aluminum Face
  • Gold
  • Non-Ferrous Metals
  • Plastic
  • Silver
  • Solid Surface
  • Titanium Composite Material (TCM)
  • Wood
Ideal for industrial applications our spiral ‘O’ flute router bits are manufactured using innovative techniques and materials that yield superior results with each cut and help make aluminum projects less labor-intensive.

Router collet reduce­­r RB-102 (1/4 to 1/8) available for 1/8 shank bits.
Zirconium Nitride (ZrN) Coating
  • Creates a harder and tougher cutting edge allows for a prolonged cutting edge life and helps to prevent the build-up of material in the flutes while cutting
  • Have the tendency to run/spin much faster than an uncoated tool
  • Optimized flute geometry and low Total Indicated Runout (TIR) guarantees clean cuts, essentially eliminates sanding and reduces chatter (where the machine or work piece vibrates) under high chip loads (when used with low TIR spindles)
  • High flute volume supports high feed rates and chip loads
  • High aspect ratio for single pass deep-reach cutting
  • Flute geometry optimized for cutting sign foam, sign board, hardwoods, thermoplastics and phenolic composites

Warning: Never attempt to cut ferrous metals with these bits.

Inspect cut quality adjust feed / speed accordingly.

 For optimal results and extended tool life use mist lubricant system or air cooling.
Benefits of Mirror-Finish
  • Razor sharp cutting edge
  • Effortless chip removal
  • Helps prevent chip re-welding
  • Extends tool life
  • Exceptional cut quality
  • Dissipates heat well and prevents melting
Speed and Feed Rate

CNC running parameters based on 1 x Diameter depth per pass:

  • RPM: 18,000
  • Feed Rate: 100 IPM
  • Chip Load per tooth: 0.006"
  • Ramp down Rate: 100 IPM
