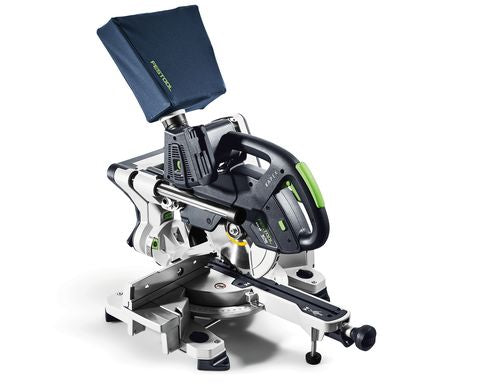

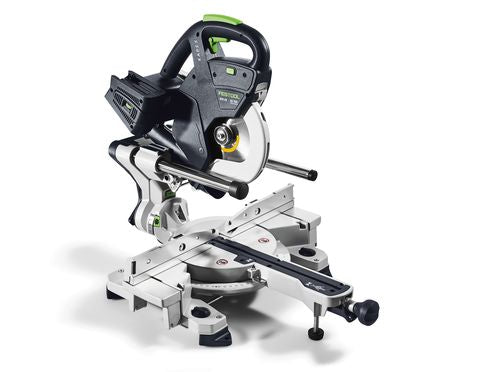

Kapex Cordless Sliding Miter Saw EB-Basic

576848

The new KAPEX KSC 60 cordless sliding compound mitre saws produce unbeatably precise cross cuts – in an enormous range of applications with miter angles of up to 60° on each side and bevel angles of up to 47° on each side. The twin-column guide with two bearings ensures that the saw blade is guided smoothly and with precision whichever setting is chosen: This makes every cut perfect, without wobble or deflection. In conjunction with the dual battery system, the brushless EC-TEC motor provides virtually unlimited endurance and is enough for all typical applications for an entire day's work. And finally, clever details such as the variable speed, saw blades for every application, bevel, ergonomic underframe and dust bag create the ultimate experience in precision, durability, and performance.

Strengths & Benefits

• Precise: LED spotlight for highlighting the cutting line and optimal visibility of the scribe mark
• Clever: The additional feet increase the height of the work table on the KSC 60 to precisely match the height of the SYS 3 M 112 or SYS 1 Systainer
• Low-dust work: Dust collection bag for convenient capture, even without a mobile dust extractor
• Easy: Bevel for capturing and transferring interior and exterior angles

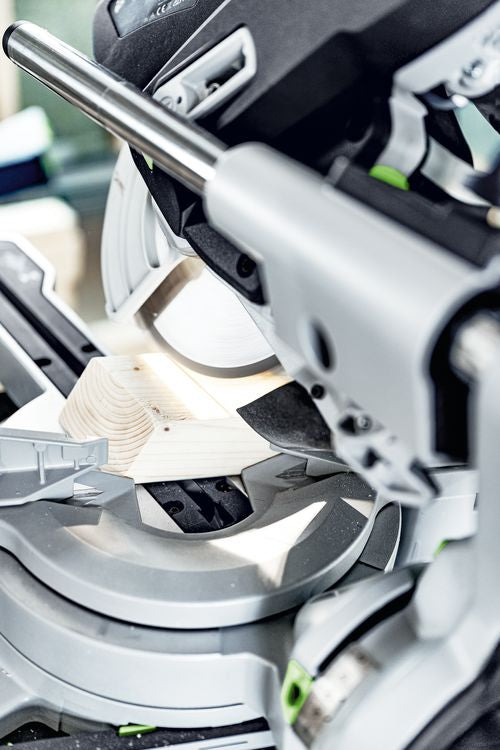

• Precise: Twin-column guide with two bearings ensures that the saw blade is guided smoothly and with precision

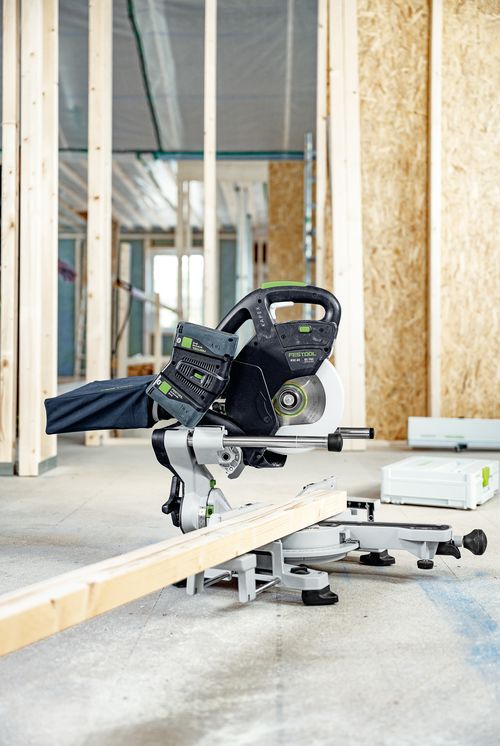

• Flexible: Extension table for the stable support of longer workpieces
• Versatile: Miter angles of up to 60° on each side and bevel angles of up to 47° on each side

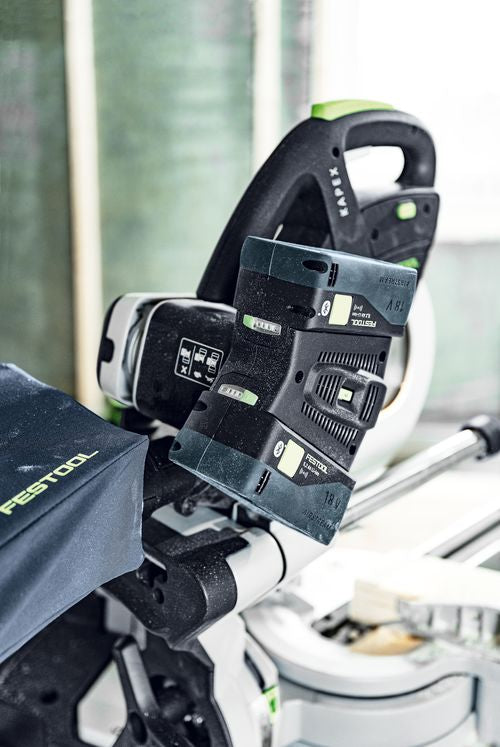

• Long-lasting: The combination of the brushless EC-TEC motor and dual battery system delivers maximum power
• Mobile: Low weight, compact design, convenient handles
• Work appropriately for the material: With saw blades for every material and variable speed to adapt to the material

• Battery voltage: 18/36 V
• Idle engine speed: 1300 - 1800-3500 RPM
• Saw blade diameter: 8-1/2" (216mm)
• Cutting depth at 90°/90°: 12" x 2-3/8" (305mm x 60mm)
• Cutting depth at 45°/90°: 8-15/32" x 2-3/8" (215mm x 60mm)
• Cutting depth at 45°/45° (left): 8-15/32" x 1-9/16" (215mm x 40mm)
• Cutting depth at 45°/45° (right): 8-15/32" x 25/32" (215mm x 20mm)
• Inclination angle: 47°/46°
• Miter angle: 60°/60°
• Cutting depth 60°/90°: 5-29/32" x 2-3/8" (150mm x 60mm)
• Dimensions (L x W x H): 25-5/32" x 18-1/16" x 17-13/32" (639mm x 459mm x 442mm)
• Dust extraction connection diameter: 1-1/16" / 1-2/5" (27/32mm)
• Battery capacity: 5.2 Ah
• Weight 1 x 18 V / 2 x 18 V: 37.69lb (17.8kg) / 40.78lb (18.5kg)

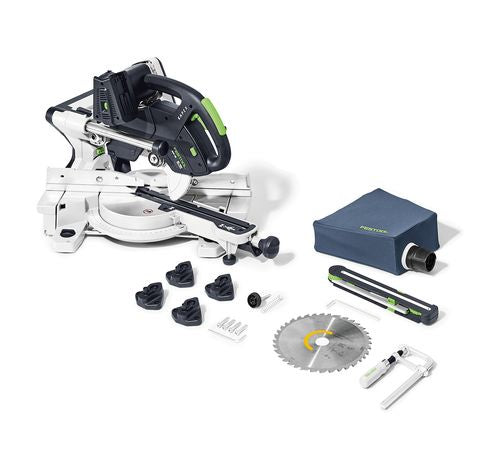

• 36 tooth Universal Saw Blade
• Screw clamp: 4-11/16" (300mm)
• LED spotlight
• Angle transfer device
• Elevation feet
• Chip collection bag
• 6mm hex key
