576821

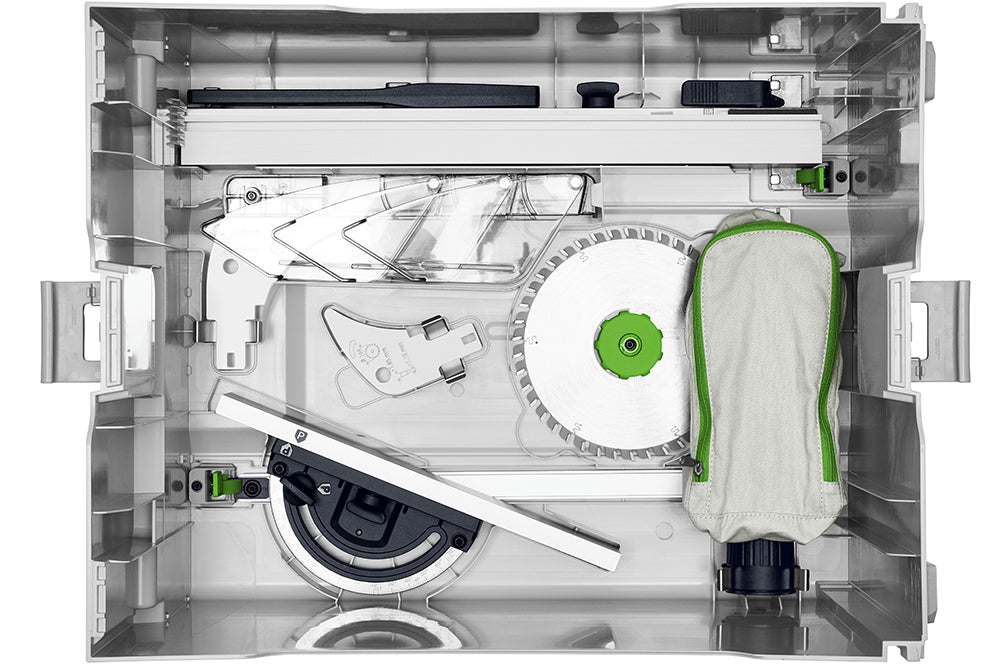

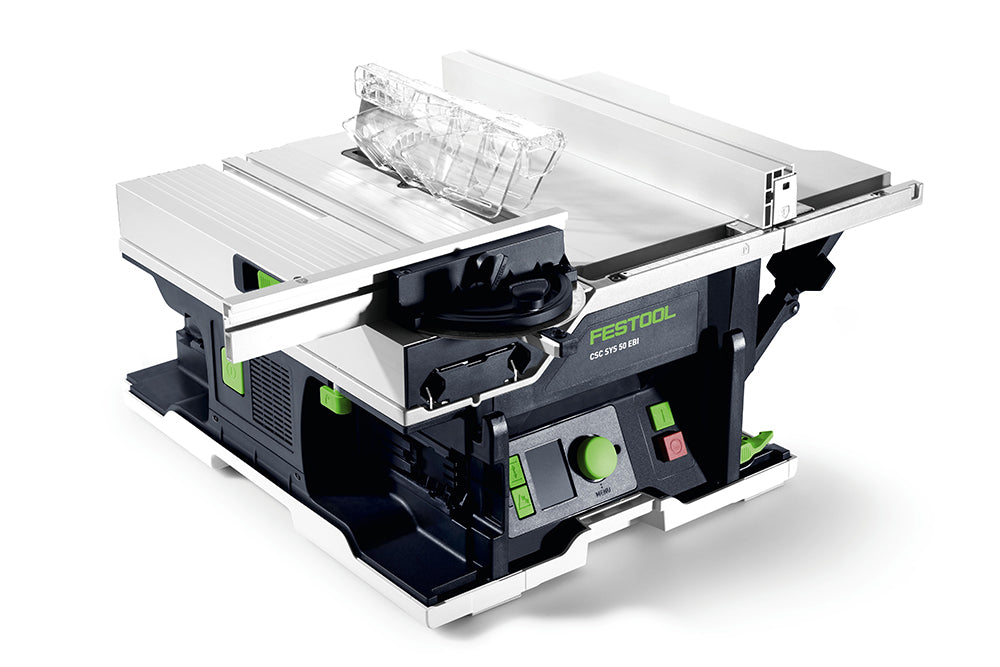

The CSC SYS 50 cordless table saw is so compact that it fits into a Systainer. It's just as versatile in use, as it is tremendously convenient in size. Make rip cuts of up to 11" (280 mm), cross-cut widths of up to 17-3/4" (450 mm) and bevel cuts of -10° to 47°. The unique digital operation produces results with maximum precision—accuracy within a tenth of a millimeter (1/256"). The 2x18 V dual-battery system in combination with the brushless EC-TEC motor will impress you with its power and torque – you won't notice any difference compared with a corded tablesaw. Together with the UG-CSC-SYS underframe, you have the perfect work table with built-in support for ripping and cross-cutting, and it collapses for easy transport from the vehicle to the site. The CSC SYS 50: The ultimate in portable precision.

Strengths & Benefits

• Versatile: Parallel cuts up to 11“ (280 mm); cross cut width of up to 17-3/4“ (450 mm). Bevel cuts from -10° to 47°
• Practical: At a cutting height of up to 1-3/8“ (35 mm), through to bevel cuts down to -10°; ideal for back-beveling filler strips
• Compact and mobile: Can be easily carried with one hand and neatly stored in a Systainer format. Even easier to transport with the wheeled UG-CSC-SYS underframe

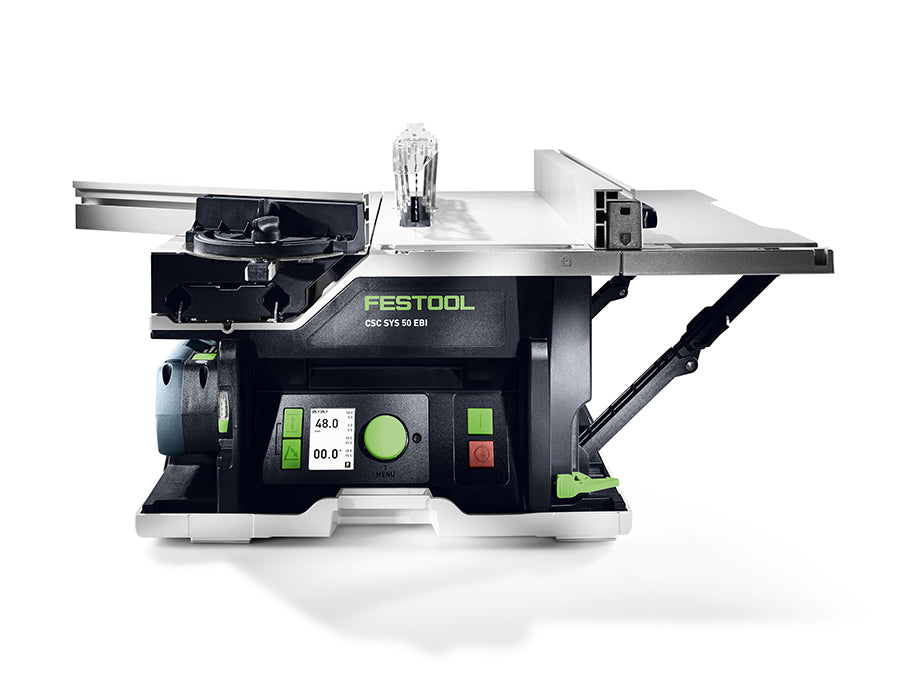

• Extreme precision: The height and bevel angle are electrically adjusted at the press of a button via the digital display – accurate to within a tenth of a millimeter (1/256“)
• Repeatable cuts are easy: The height and angle (mm and inches) are set parallax-free via the digital display, i.e., more accurately than any visual judgement. Repeatable cuts are a sure thing
• Convenient: Four saw blade positions can be saved and selected via the digital display
• Highly precise rip fence: Robust rip fence with double clamp (via just one clamp lever) for exact alignment and perfect cutting results
• Highly precise angles: The miter gauge is optimally aligned and centrally clamped via a groove on the sliding table. For miter angles between -70° and +70°

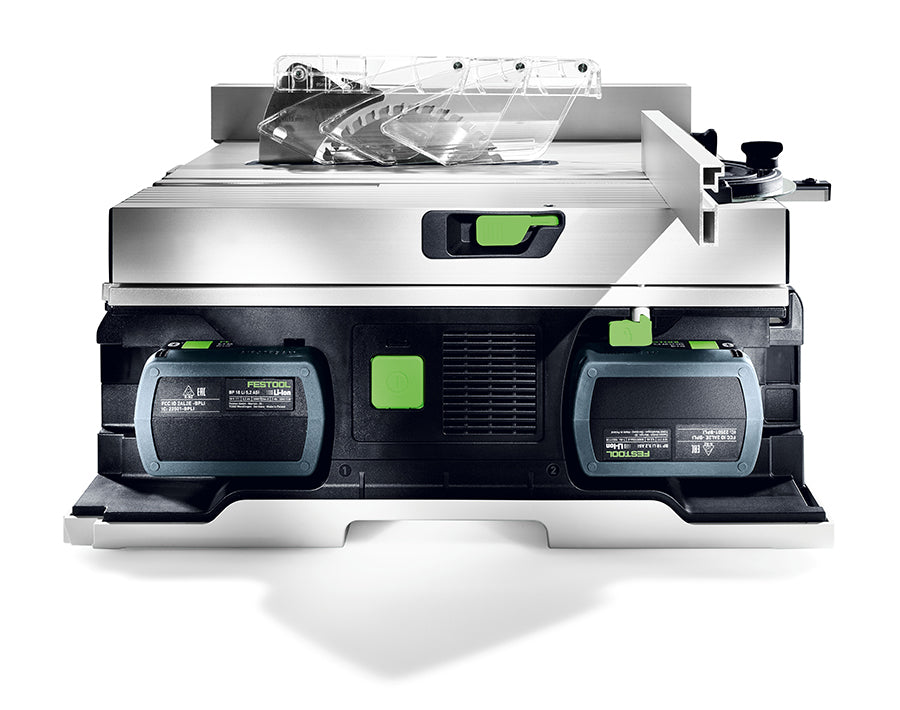

• Battery voltage: 2 x 18 V
• Idle engine speed: 4500-6800 RPM
• Arbor: 3/4" (20mm)
• Blade diameter: 168mm (6.61")
• Bevel angle: -10° to 47°
• Cutting height at 0°: 0" to 1-7/8" (0-48mm)
• Cutting height at 45°: 0" to 1-11/32" (0-34mm)
• Cutting height at -10°: 13/16" to 1-1/4" (21-32mm)
• Mitre angle: 0-70°
• Parallel cut width: 11" (280mm)
• Tabletop height: 11" (280mm)
• Dimensions (L x W x H): 20-5/32" x 15-19/32" x 11-21/32" (512mm x 396mm x 296mm)
• Dust extraction connection diameter: 1-1/16" (27mm)
• Battery capacity: 5Ah
• Weight (excluding battery): 45lb (20.2kg)

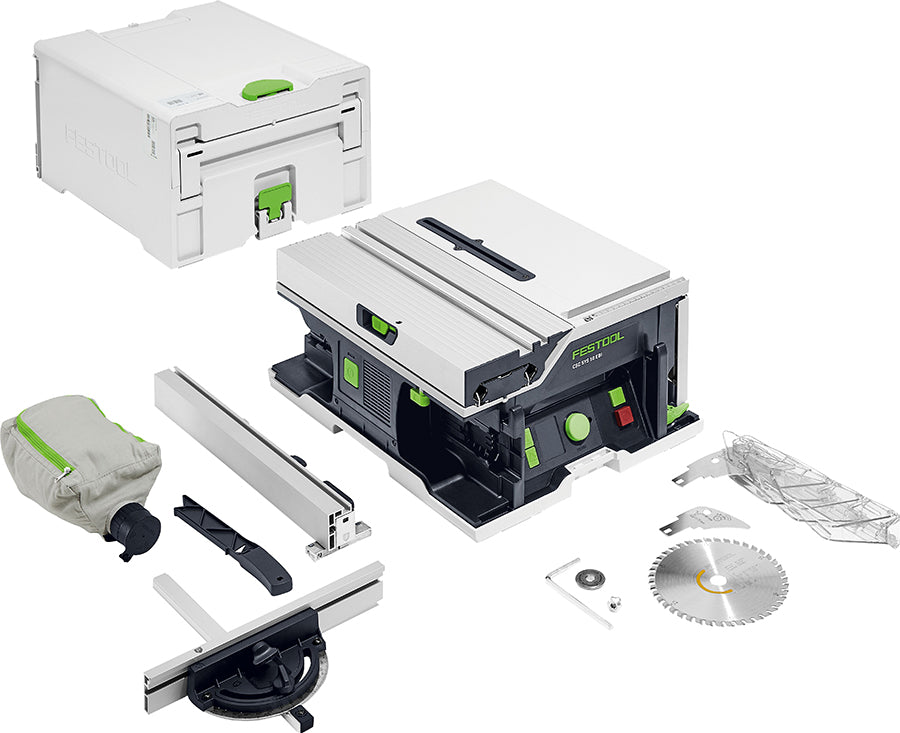

• 42 tooth Fine-tooth Saw Blade
• Rip fence
• Push stick
• Miter gauge
• Dust collection bag
• Riving knife
• Blade guard and splitter
• Hex key WAF 6
