For OFKC 500: Collet-free, hollow-shaft design

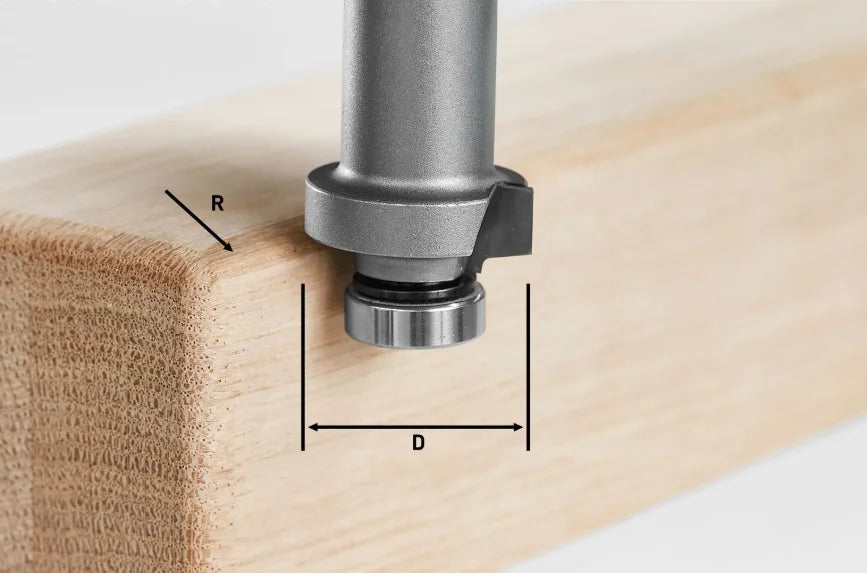

Roundover Bit

• There are 2 types of roundover bits for the OFKC 500: 1 cutter bits (Z1) or 2 cutter bits. The single-edged cutter bits (Z1) are best for when routing across the grain as it generates less heat which means fewer burn marks.
• All roundover bits do not come with a ball bearing, they require 490249 (KLS-D 15.8-OFK)

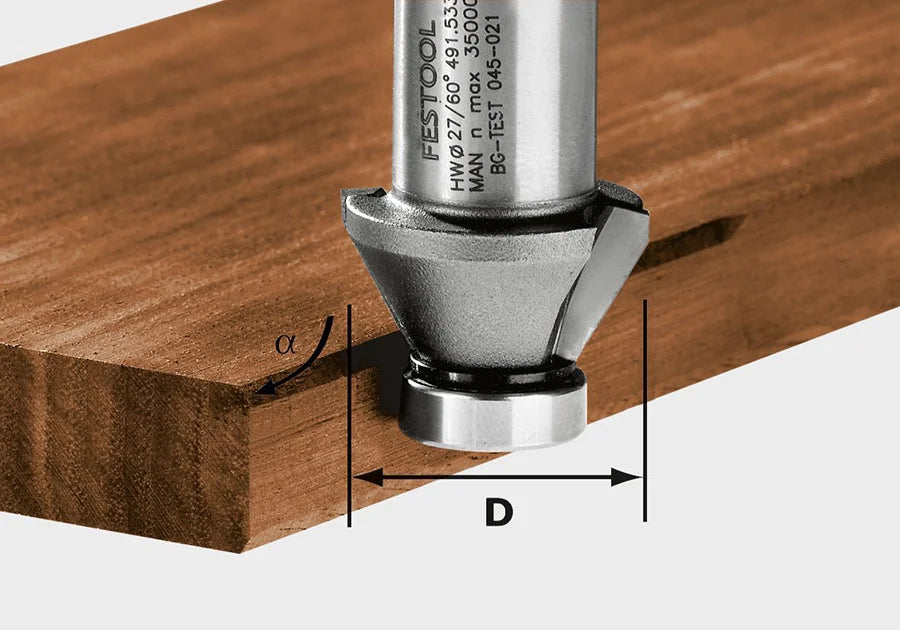

Chamfer Bit

• This bit is used for cutting 45° on your boards edge.
• This bit does not come with a ball bearing, it requires 490249 (KLS-D 15.8-OFK).

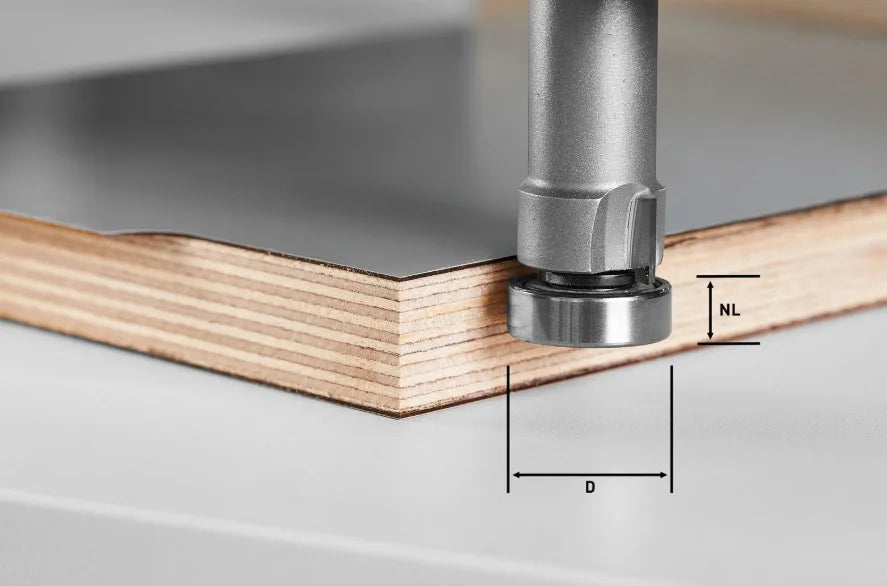

Edge Trimming Bit

• This bit is designed for flush trimming.
• This bit comes with a ball bearing guide; 490565 (KLS-D 22-OFK).

Roundover Bit - 1 cutter - Diameter = 27mm (1-1/16")

• 578376 - Radius = 1mm (1/32")
• 578377 - Radius = 2mm (3/32")
• 578378 - Radius = 3mm (1/8")

Roundover Bit - 2 cutters - Diameter = 27mm (1-1/16")

• 490092 - Radius = 2mm (3/32")
• 490093 - Radius = 3mm (1/8")
• 490094 - Radius = 4mm (15/32")
• 490095 - Radius = 5mm (3/16")
• 490096 - Radius = 6mm (1/4")

Chamfer Bit - Diameter = 27mm (1-1/16")

• 490090 - 45° angle

Edge Trimming Bit - Diameter = 22mm (7/8")

• 490565 - Cut Length = 8mm (5/16")

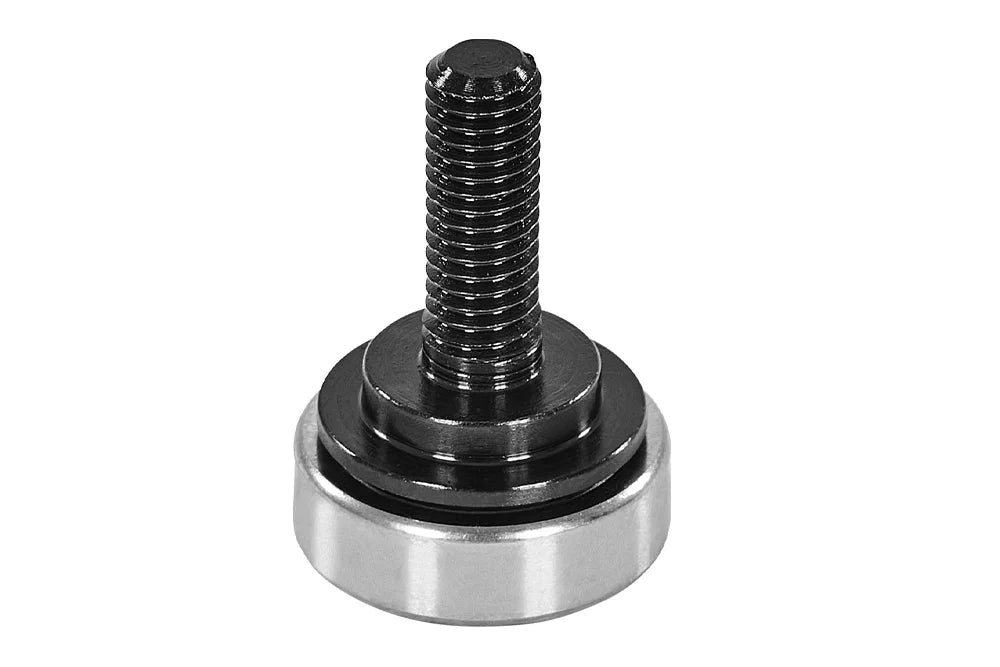

Bearing Guides:

490249 - KLS-D 15.8-OFK

• For bits: 490090, 490092, 490093, 490094, 490095, 490096, 578376, 578377, 578378
• Precision steel ball bearing with integrated mounting screw

490250 - KLS-D 22-OFK

• For router bit: 490565
• Precision steel ball bearing with integrated mounting screw
